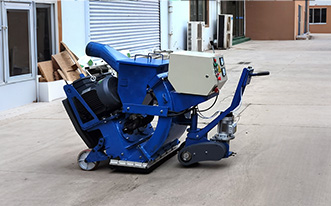

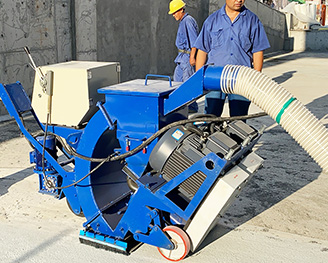

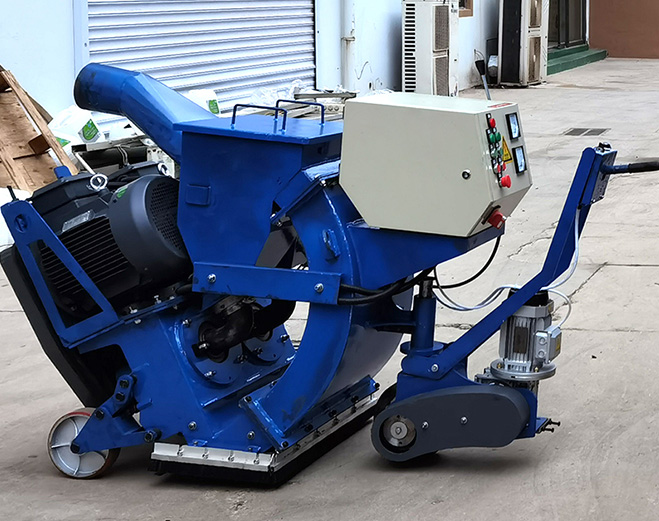

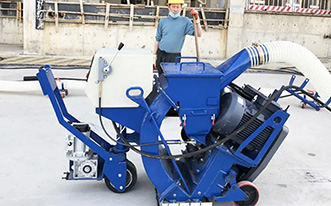

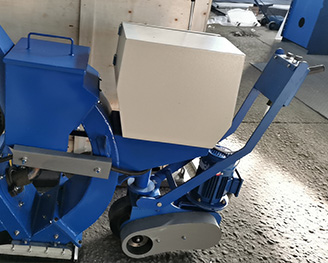

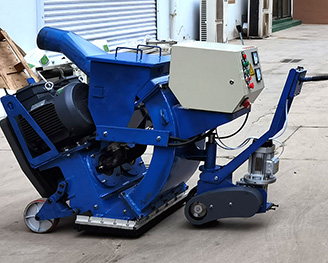

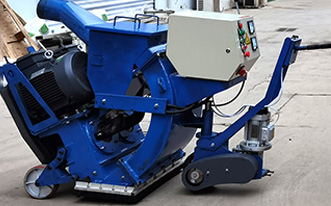

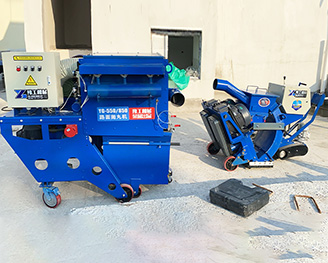

Designed specifically for surface cleaning and texturing of concrete, asphalt, and steel. Using a mechanical method to propel steel shot at high speed onto the working surface, it removes contaminants, roughens the surface, and improves friction coefficient. The integrated dust collector ensures a dust-free, environmentally friendly operation with automatic shot recycling.
Send E-mail : supports@yugongmachine.com
Removes laitance, old coatings, and markings from concrete and asphalt. Increases surface roughness and friction coefficient for improved safety.

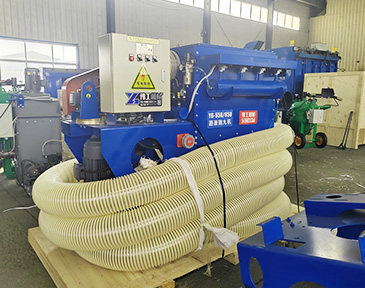

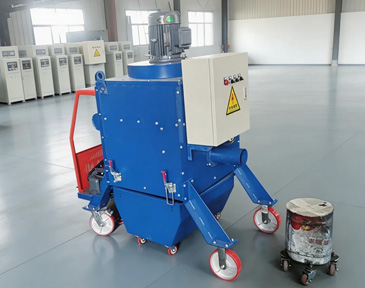

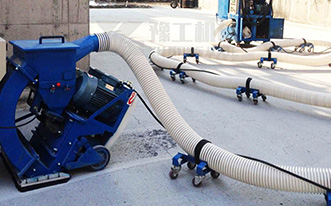

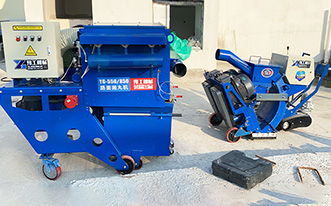

Equipped with a high-performance dust collector featuring automatic air reverse cleaning. No dust pollution during operation, meeting environmental requirements.

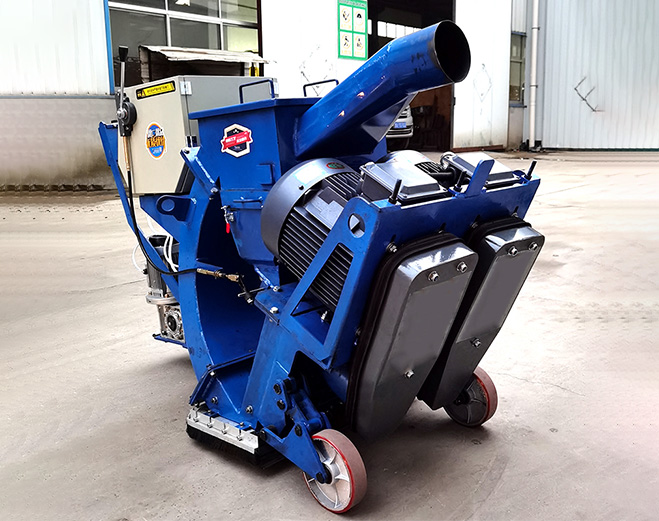

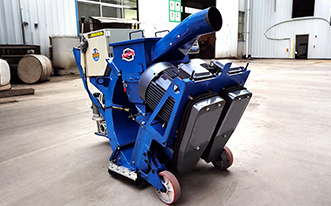

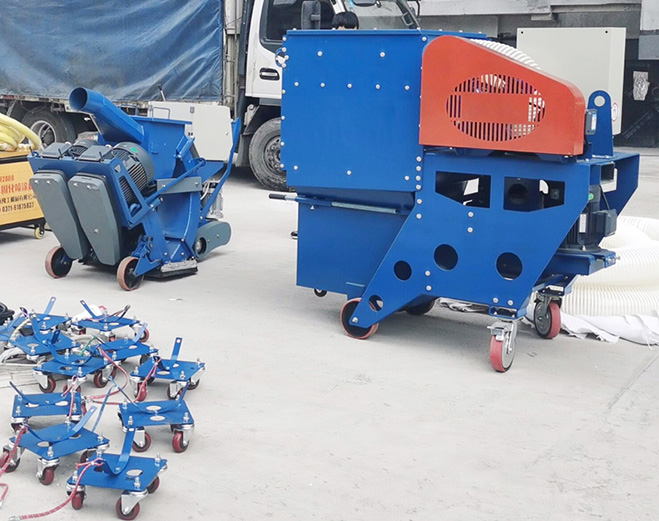

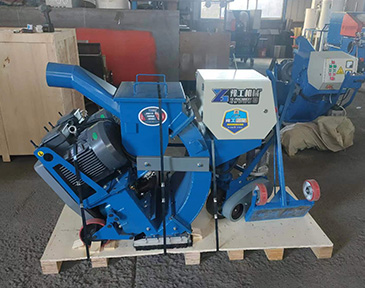

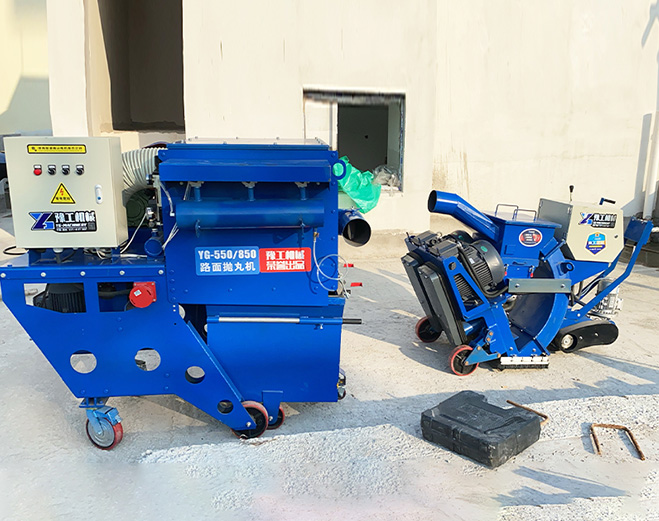

Available in 270mm, 550mm, and 850mm cleaning widths. Single-motor and dual-motor options to suit different project scales and efficiency needs.

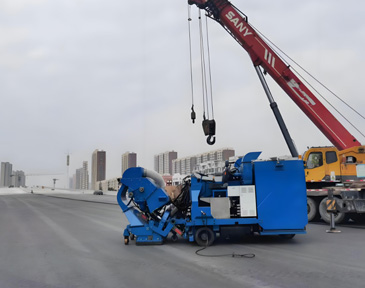

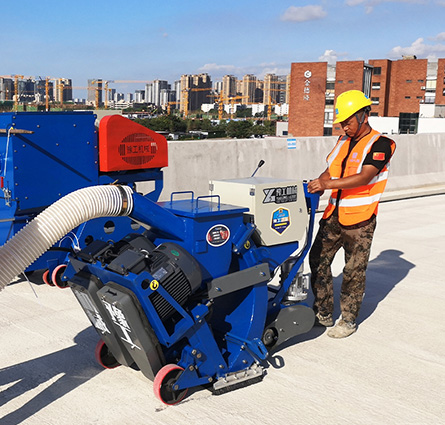

Suitable for concrete bridge decks, airport runways, steel structures, pedestrian overpasses, and railway bridge waterproofing layers.
| Model | 270（Single） | 550（Dual） | 850（Dual） |
| Cleaning Width | 270 mm | 550 mm | 850 mm |
| Number of Motors | 1 pcs | 2 pcs | 2pcs |
| Blast Motor Power | 11 kW | 2 x 11 kW | 2 x 15 kW |
| Travel Motor Power | 0.75 kW | 0.75 kW | 1.5 kW |
| Travel Speed | 0-30 m/min | 5-25 m/min | 5-25 m/min |
| Shot Capacity | 200 kg/min | 20 t/h separation | 20 t/h separation |
| Shot Load | 50 kg | 150 kg | 150 kg |
| Shot Diameter | 1.2-1.8 mm | 1.5-1.8 mm | 1.5-1.8 mm |
As a source manufacturer with decades of surface preparation equipment experience, we eliminate middlemen and provide complete after-sales support.
Our products are used in Southeast Asia, the Middle East, Europe, the Americas, and Africa, proven to perform under tough conditions.
We offer full operation training videos, dust collector matching guidance, and shot blasting parameter recommendations to ensure customers are ready to use the machine upon arrival.
From the shot blasting machine and dust collector to steel shots, wear parts, and filters, we provide a complete range of accessories to reduce procurement complexity.
Henan Yugong Machinery Co., Ltd., established in 2005, boasts 20 years of industry experience, over 500 employees, and an 80,000 square meter modern factory. Yugong holds registered trademarks such as "Yugong Machinery" and is certified by ISO International Quality Management System, National AAA Integrity Enterprise, and SGS International Certification. The company employs professional product development and pre-sales and after-sales personnel. With its superior products and services, the company has earned the trust and recognition of over 2,000 customers, and its products are exported to over 100 countries and regions worldwide. Yugong always adheres to the customer-first principle, ensuring every customer receives satisfactory products and services.
