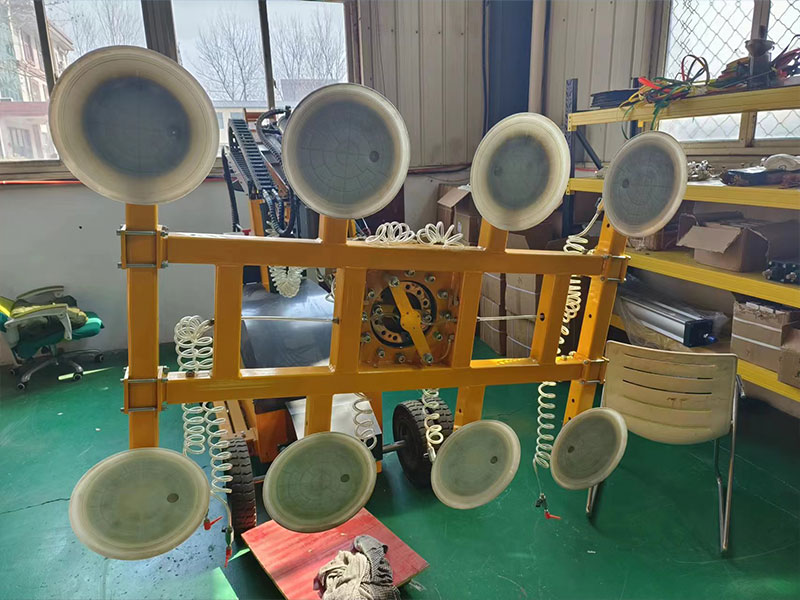

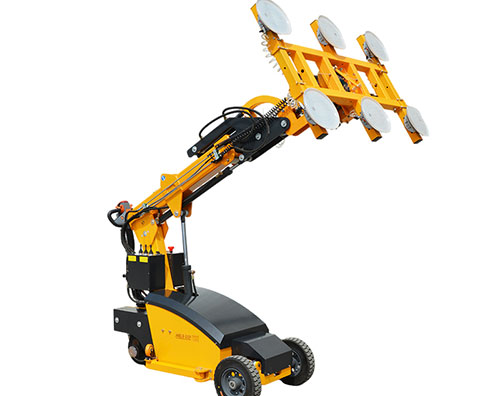

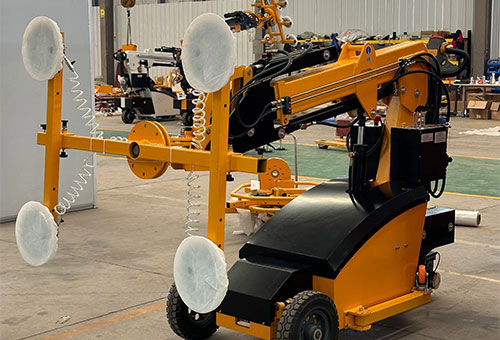

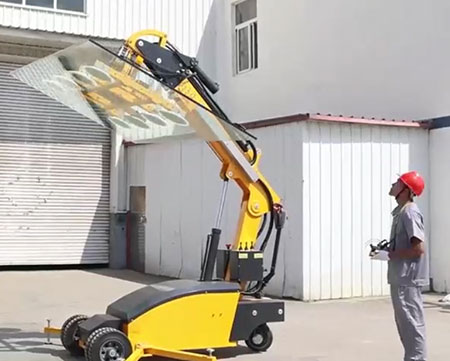

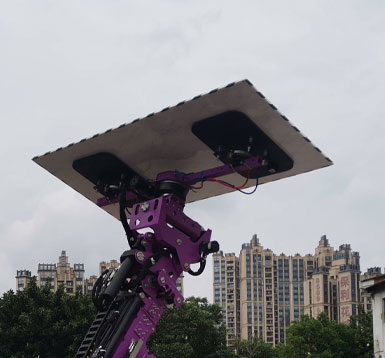

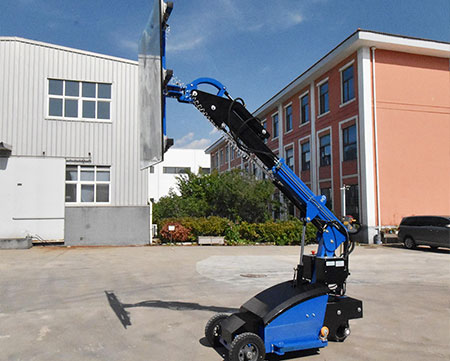

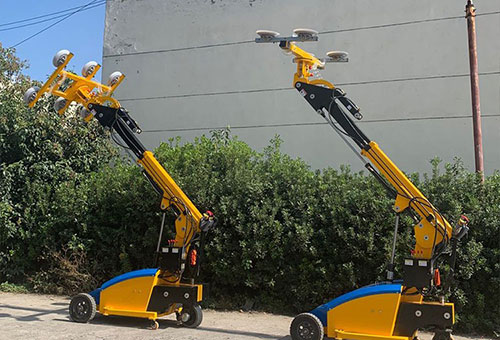

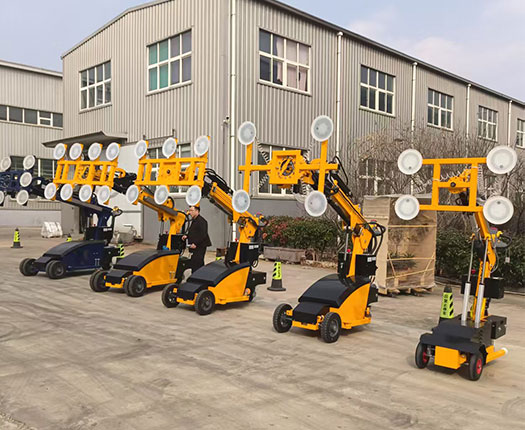

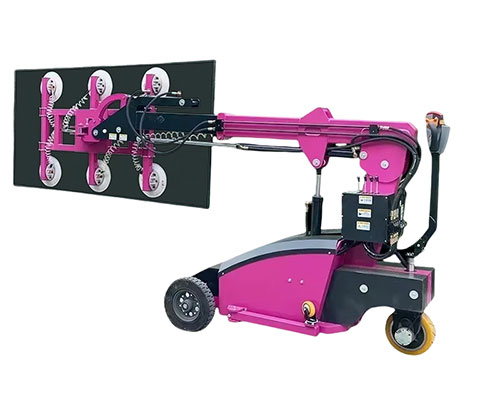

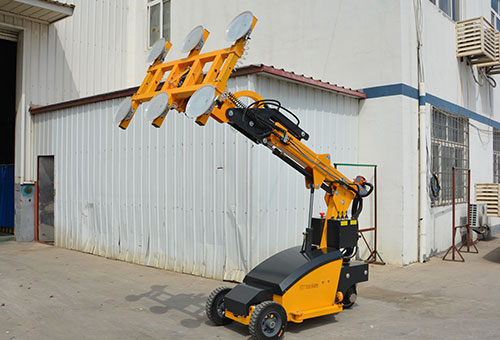

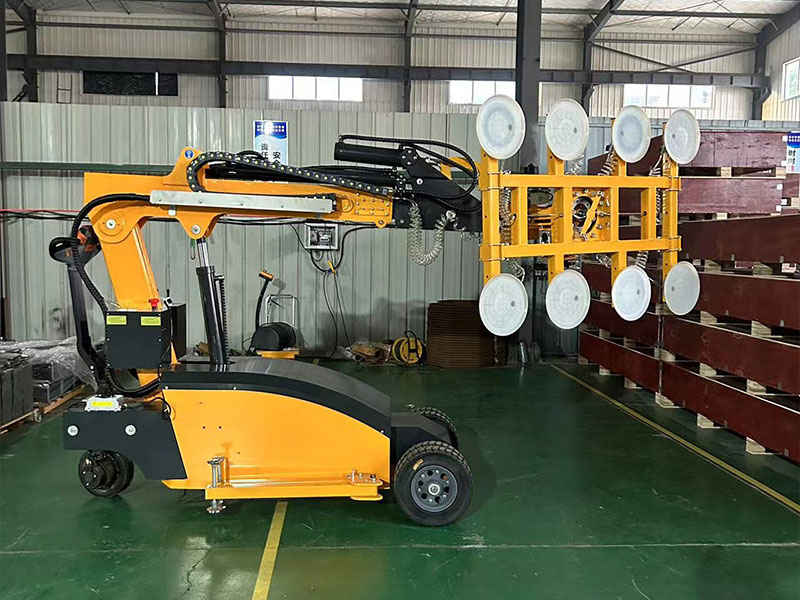

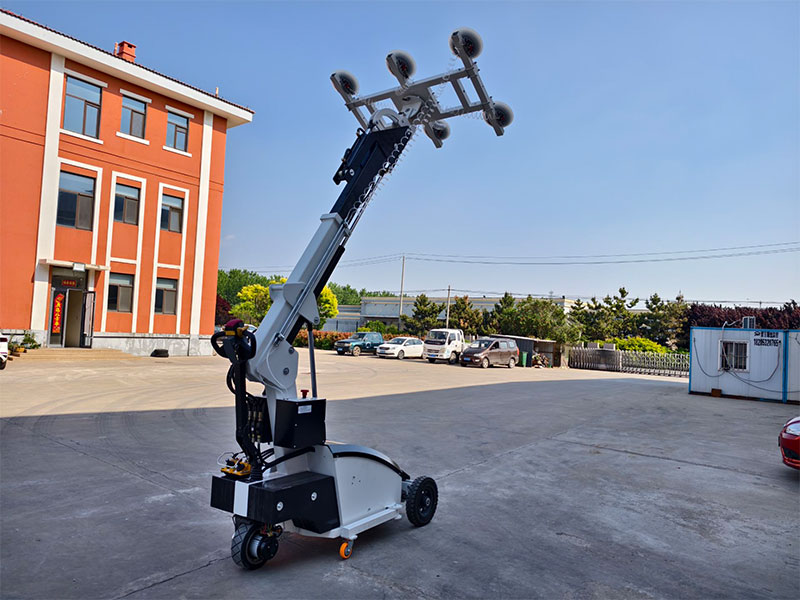

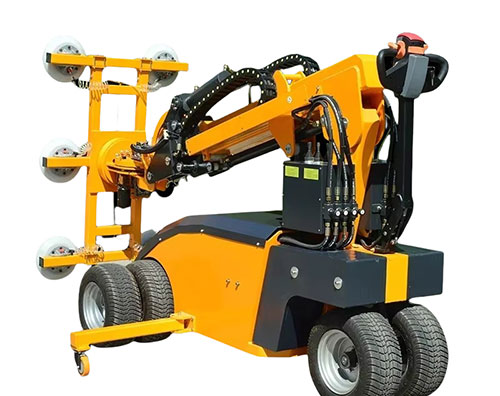

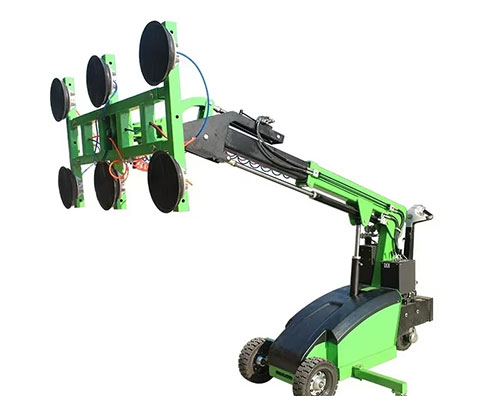

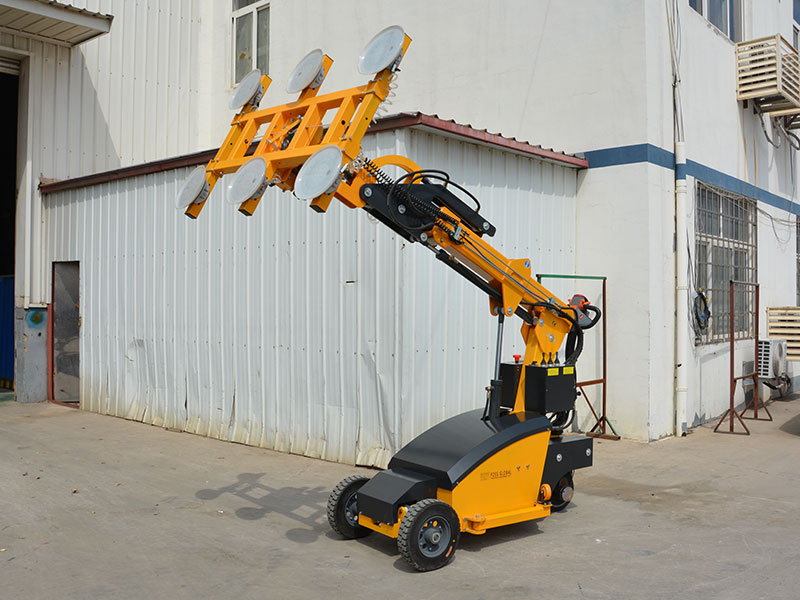

Powerful Features of the Glass Suction Cup Lifting PlatformElectric 90° Rotation — The suction cup frame can rotate 90° electrically for fast and precise glass positioning.Telescopic Main Boom — The telescopic boom expands the working range without moving the vehicle.Hydraulic Lifting Boom — Smooth and powerful vertical lifting, easily handling heavy objects.100mm Lateral Movement — The main support arm can move 100mm laterally without repositioning the vehicle — Ideal for working in confined spaces.90° and 360° Rotation — The suction cup frame supports rapid 90° rotation and 360° omnidirectional rotation.Wireless Remote Control — Safe and remote operation by a single person.
Send E-mail : supports@yugongmachine.com

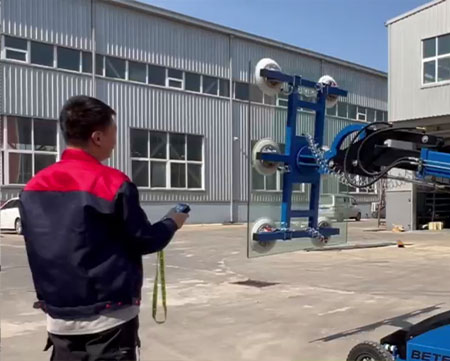

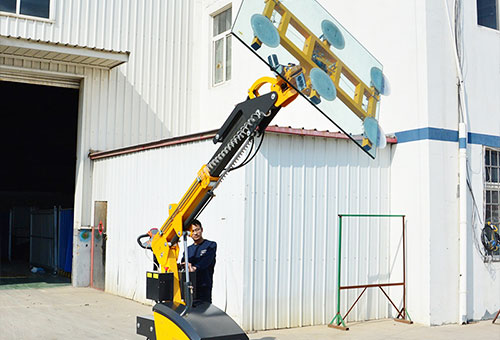

Safe one-person glass handling
Fast and precise positioning
Heavy duty glass installation
Work without moving the vehicle
| Model | GL-LD-300 | GL-LD-400 | GL-LD-500 | GL-LD-600 | GL-LD-800 |
| 300kg (Retracted) | 400kg (Retracted) | 500kg (Retracted) | 600kg (Retracted) | 800kg (Retracted) | |
| 150kg (Extended) | 200kg (Extended) | 250kg (Extended) | 300kg (Extended) | 400kg (Extended) | |
| Lifting Height | 3600mm | 3600mm | 3700mm | 3700mm | 5000mm |
| Suction Cup number | 4pcs | 4pcs | 6pcs | 6pcs | 8pcs |
| Travel Motor | 16V/1500W | 16V/1500W | 24V/1500W | 24V/1500W | 24V/1200W |
| Lifting Motor | 24V/2000W/10L | 24V/2000W/10L | 24V/2000W/10L | 24V/2000W/10L | 24V/2000W/10L |
| Battery Charger | Intelligent Charger | Intelligent Charger | Intelligent Charger | Intelligent Charger | Intelligent Charger |
| Packing size(mm) | 2580*1030*1600 | 2580*1030*1600 | 2580*1030*1600 | 2580*1050*1600 | 3630*1125*1760 |
| N.W/G.W (Unit: kg) | 1100/1150kg | 1280/1330kg | 1300/1350kg | 1400/1450kg | 1600/1650kg |
Work Safer, Faster and More Efficiently
Telescopic boom and 100mm side shift reduce the need to move the vehicle repeatedly

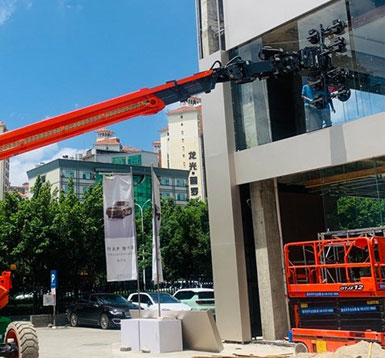

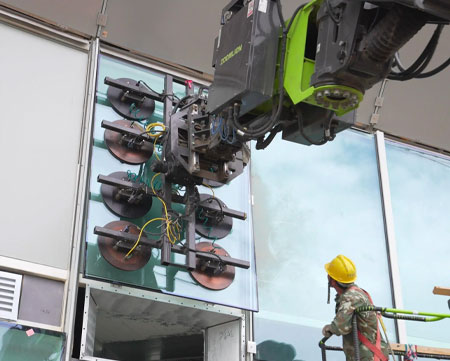

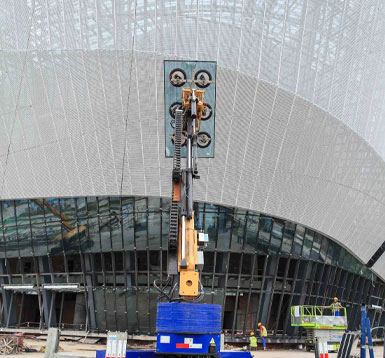

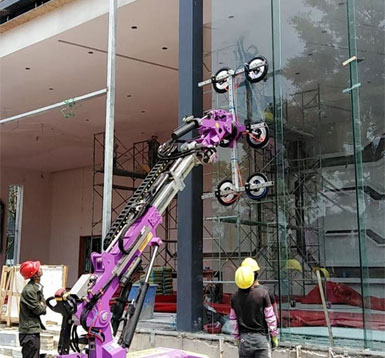

Electric + manual rotation gives full control for curtain wall and facade installation,Significantly lower labor costs and risk of glass damage or injury

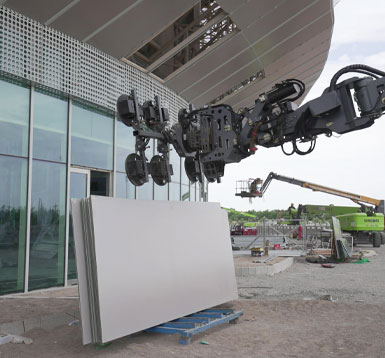

Ideal as a heavy duty glass vacuum lifter for glass, marble, stone panels and prefabricated components
